Technical Data

Model: PLP Load Port

Functionality:

• Dimensions:
  • Width (W): 794 mm
  • Depth (D): 712 mm
  • Height (H): 1420 mm
• Weight:

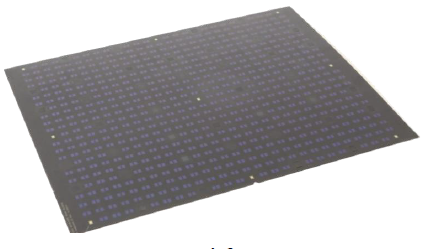

  • For a 600 × 600 mm panel: 140 kg or more
  • For a 515 × 510 mm panel: 130 kg or more
• Utility:
  • Air consumption: 0.45~0.60 MPa, 40 L/min
  • Vacuum air: ≤ 40 kPa, 5 L/min
  • Electricity: DC24V, 6.0A
• Cycle Time:
  • Load: 15 seconds or less (air pressure: 0.5 MPa)
  • Unload: 15 seconds or less (air pressure: 0.5 MPa)
• Noise Level: 70 dB or less
• Caster:
  • Attachable/Removable
  • Additional options include:
    • Mapping function
    • N2 Purge function
    • Indicator Panel (selectable)
• Other Options:
  • Switch Panel (selectable)
  • ID Reader
  • Infopad Pin
  • AC200V
